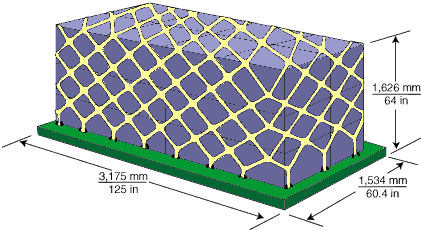

Lower Deck Pallet with Net-IATA Type 6-IATA Prefix: PL
Maximum Gross Weight
3,175 kg / 7,000 lb
Volume
6.94 m
3
/ 245 ft
3
Tare
90 kg / 198 lb
External Dimensions
(L x W x H)
3,175 mm x 1,534 mm x 1,626 mm
(125 in x 60.4 in x 64 in)
Aircraft Accepted For
DC10, DC10-30 Freighter, 747, 777
